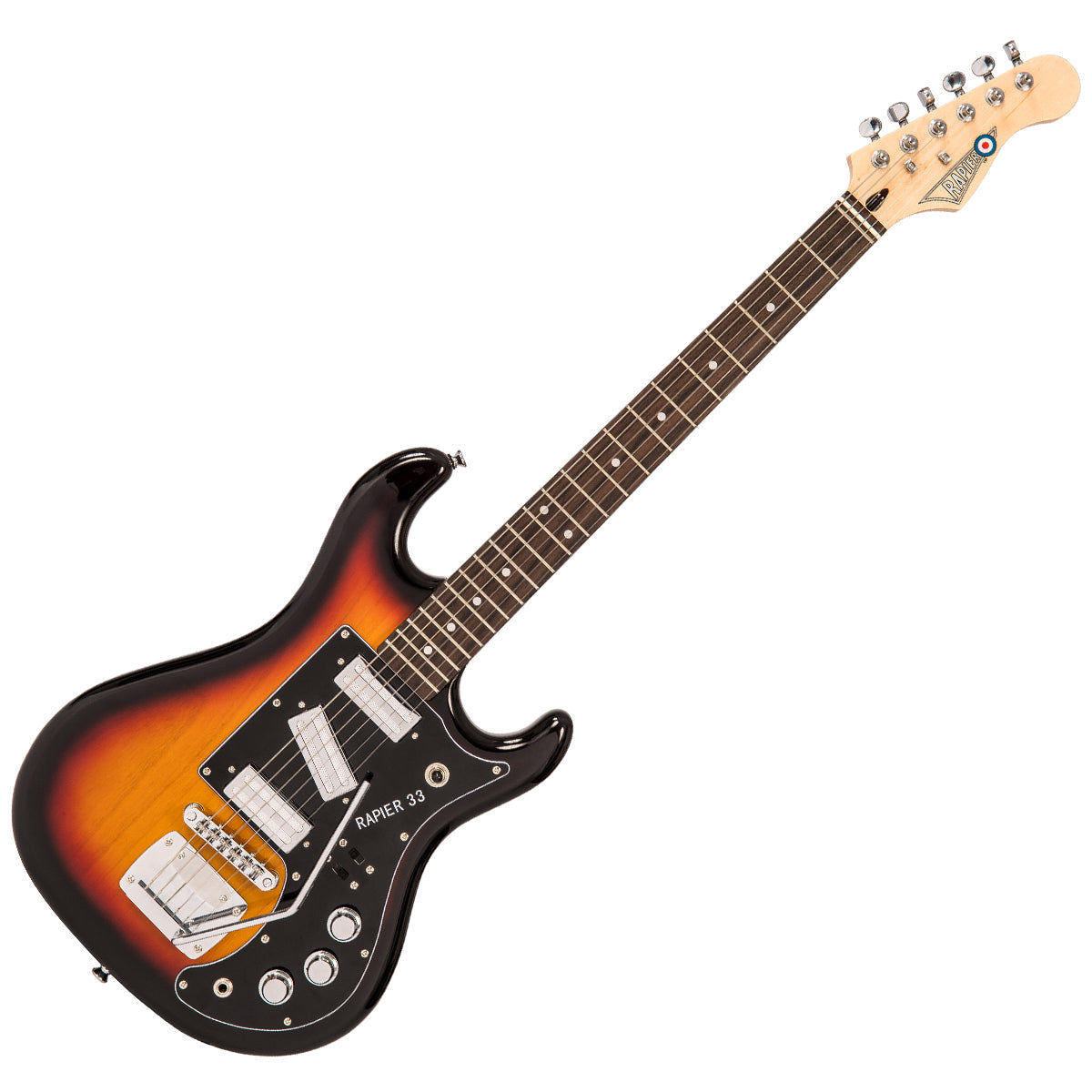

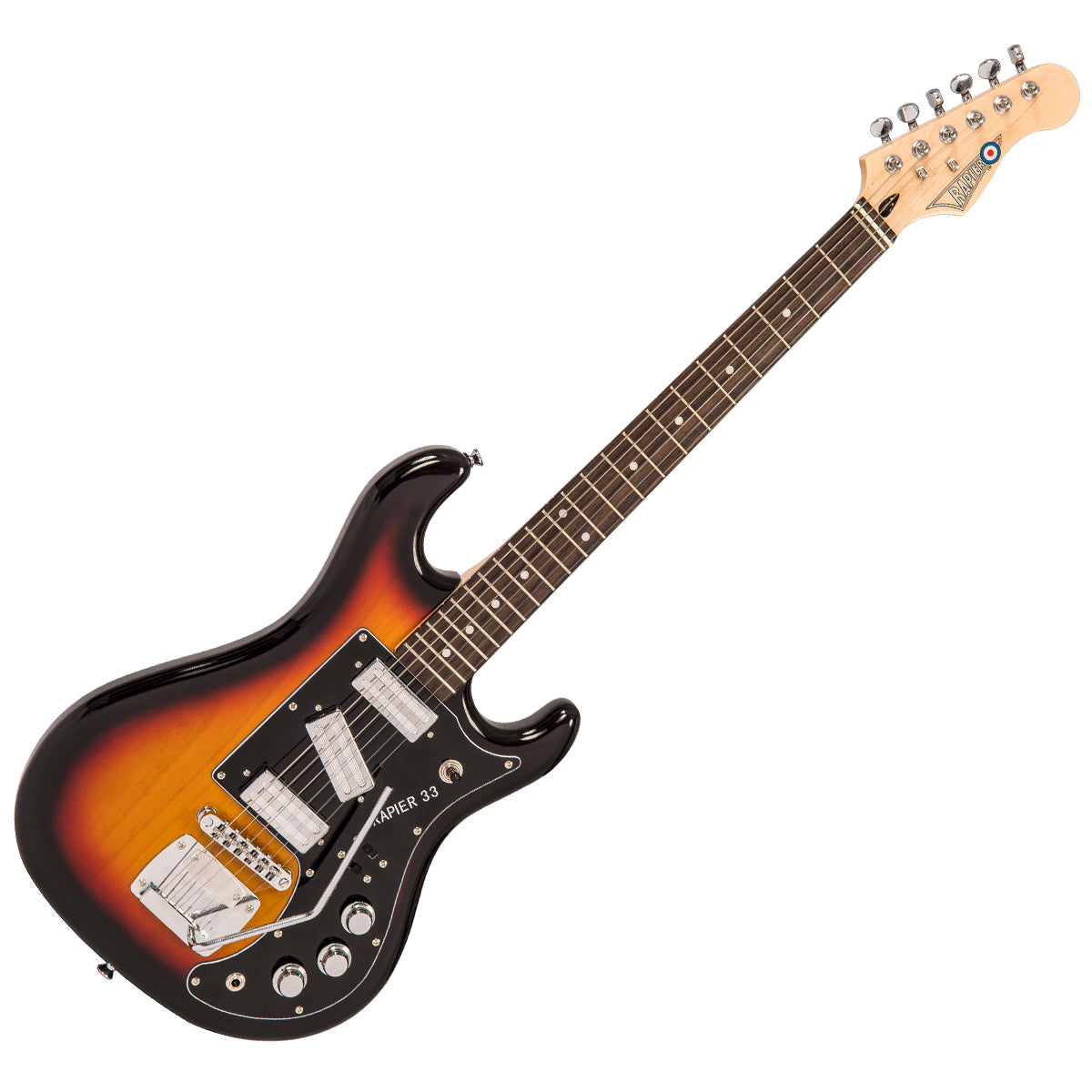

Rapier 33 Electric Guitar ~ 3 Tone Sunburst

The stunning new generation Rapier 33 is a product design from Alan Entwistle, the UK genius guitar designer responsible for a host of successful guitar lines and accessories.

The original Rapier 33, instantly recognisable with its forward slanted middle pickup, was the solid bodied electric that played a major role in the industry of British guitars. This legendary guitar served countless up and coming 60’s British Beat groups and helped launch the careers of many guitarists in the 60's and 70's.

Whilst Entwistle has successfully retained all the glorious charms and visual characteristics of the original ‘legendary’ Rapier 33, significant and meticulous attention has been made within hardware upgrades, construction and playability for this fabulous new model.

Selected specifically for its natural sonic characteristics, Okoume, from Central Africa, is the chosen tonewood for the body, whilst for speed, comfort and accuracy, the 4-bolt, soft ‘C’ profiled neck with fully adjustable truss rod, is now crafted from hard rock Canadian maple, with a 12in radius rosewood fingerboard, fitted with 23 medium jumbo frets (including zero fret).

For accurate intonation, tuning stability and perfect return to pitch from the original vibrato design, the exciting new Rapier 33 now features a smooth, friction-free, precision cut 43mm nut, Wilkinson machine heads and high spec’d roller bridge.

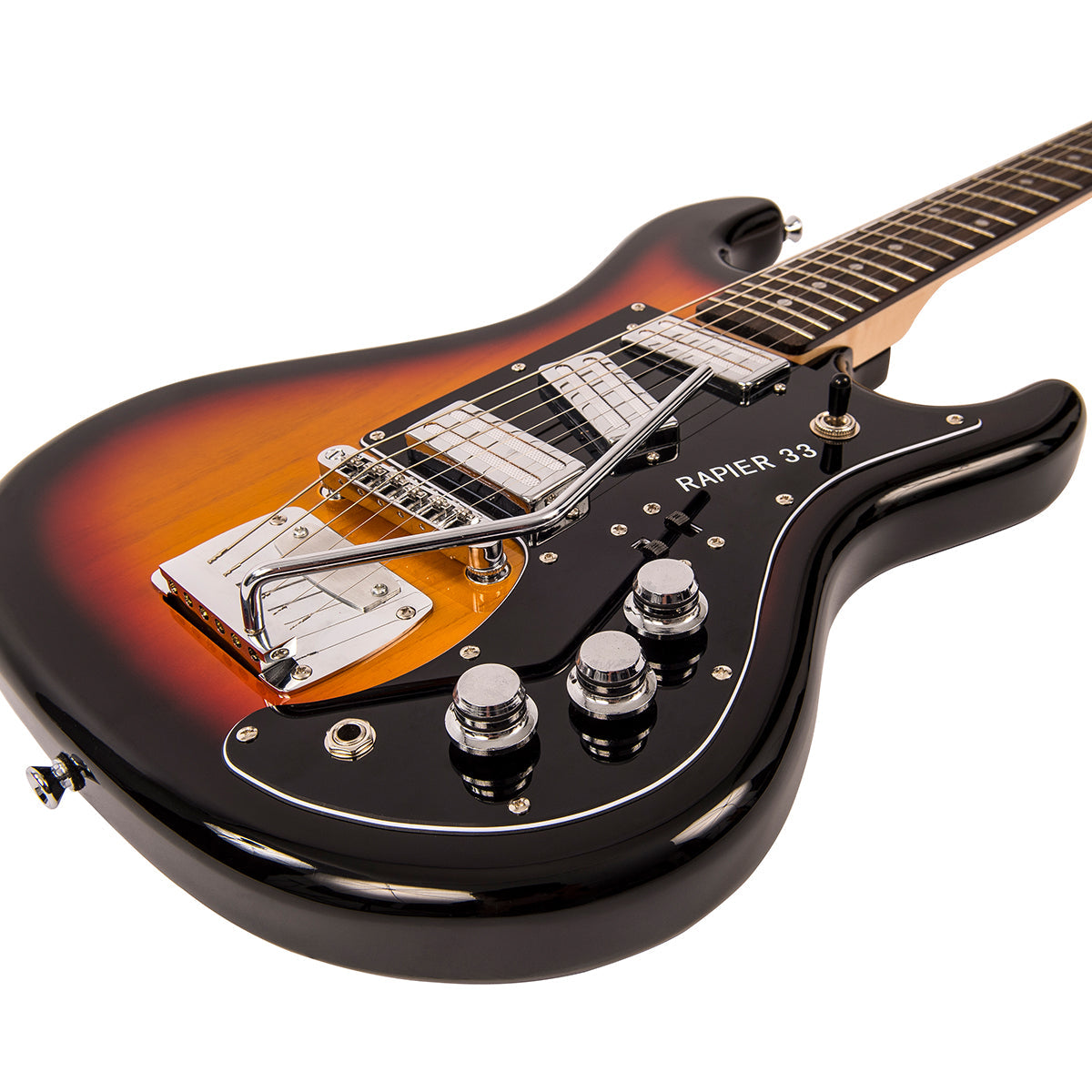

With a 3 ply scratchplate, immaculate 3 Tone Sunburst finish and new Rapier headstock logo, this guitar does indeed look visually very impressive. Stunning looks aside, modern upgrades also include pickups, internal wiring and controls which have all experienced Entwistle’s magical touch.

A trio of Entwistle low noise EWR64 mini-humbucker pickups, with exceptional tonal response, balanced output and clarity are now installed and, when used in conjunction with the ‘Bass Cut’ switch, delivers that classic and much-loved 60’s jangle.

“Both Volume and Tone controls are wired with 500k pots, linear and log respectively,” says Alan “And, with jazz and blues players in mind, the Tone control includes a 0.015 mfd cap which retains clarity when wound back, whilst also delivering that classic, rich response when played with overdrive or distortion.”

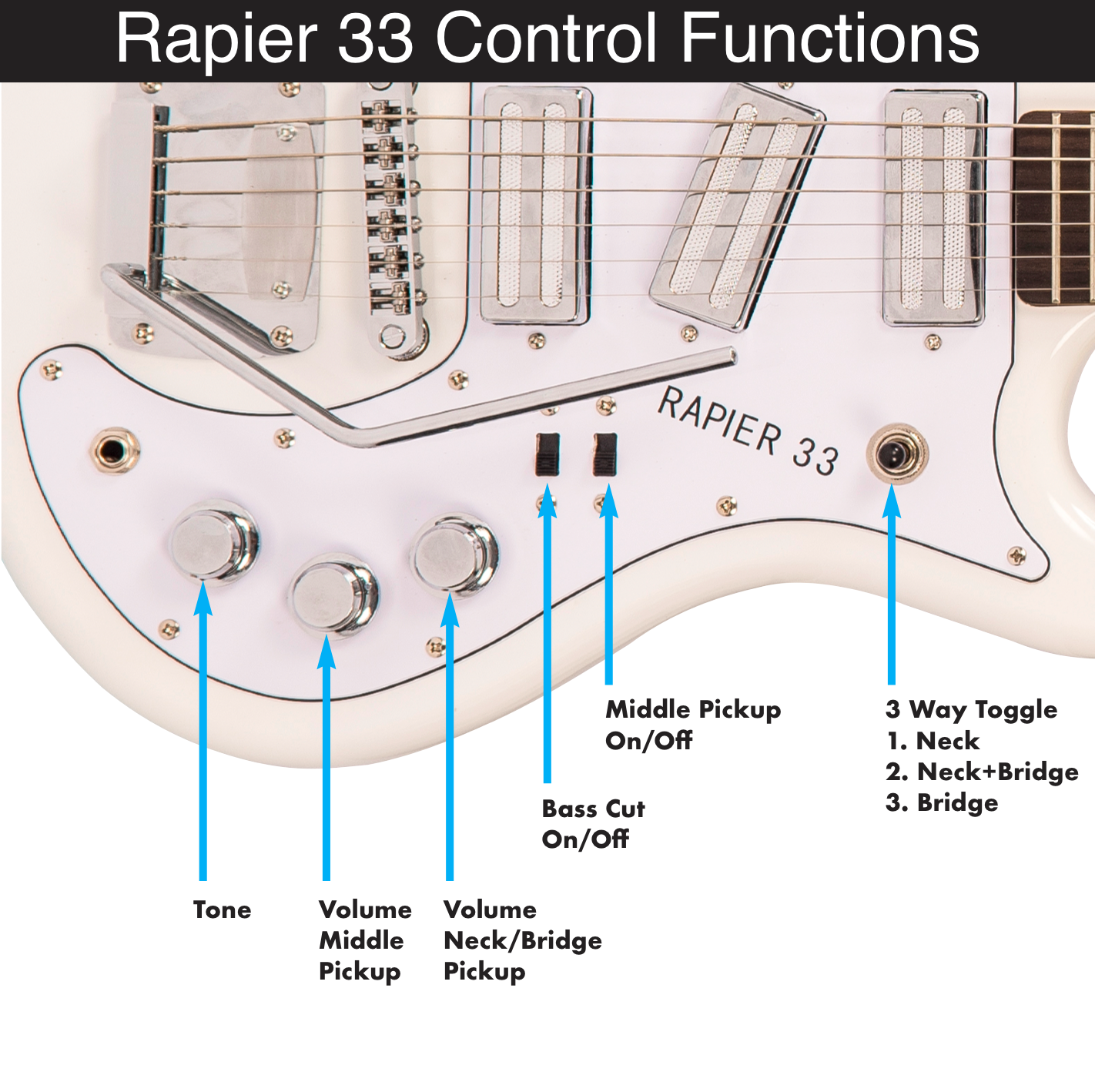

The original Rhythm/Solo toggle switch has been rewired as a 3 way pickup selector accessing neck, neck/bridge and bridge units. With the middle pickup now introduced via the second slide switch, 7 pickup permutations are available for an extremely versatile guitar.

Now with upgraded hardware, exceptional playability and performance, the new generation Rapier 33, will not only evoke nostalgic memories for old-school players and collectors, it’s also the professional choice for Britains new young talent.

Gear News talks to Alan Entwhistle about the new generation Rapier 33 HERE.

Rapier 33 Features

Body:

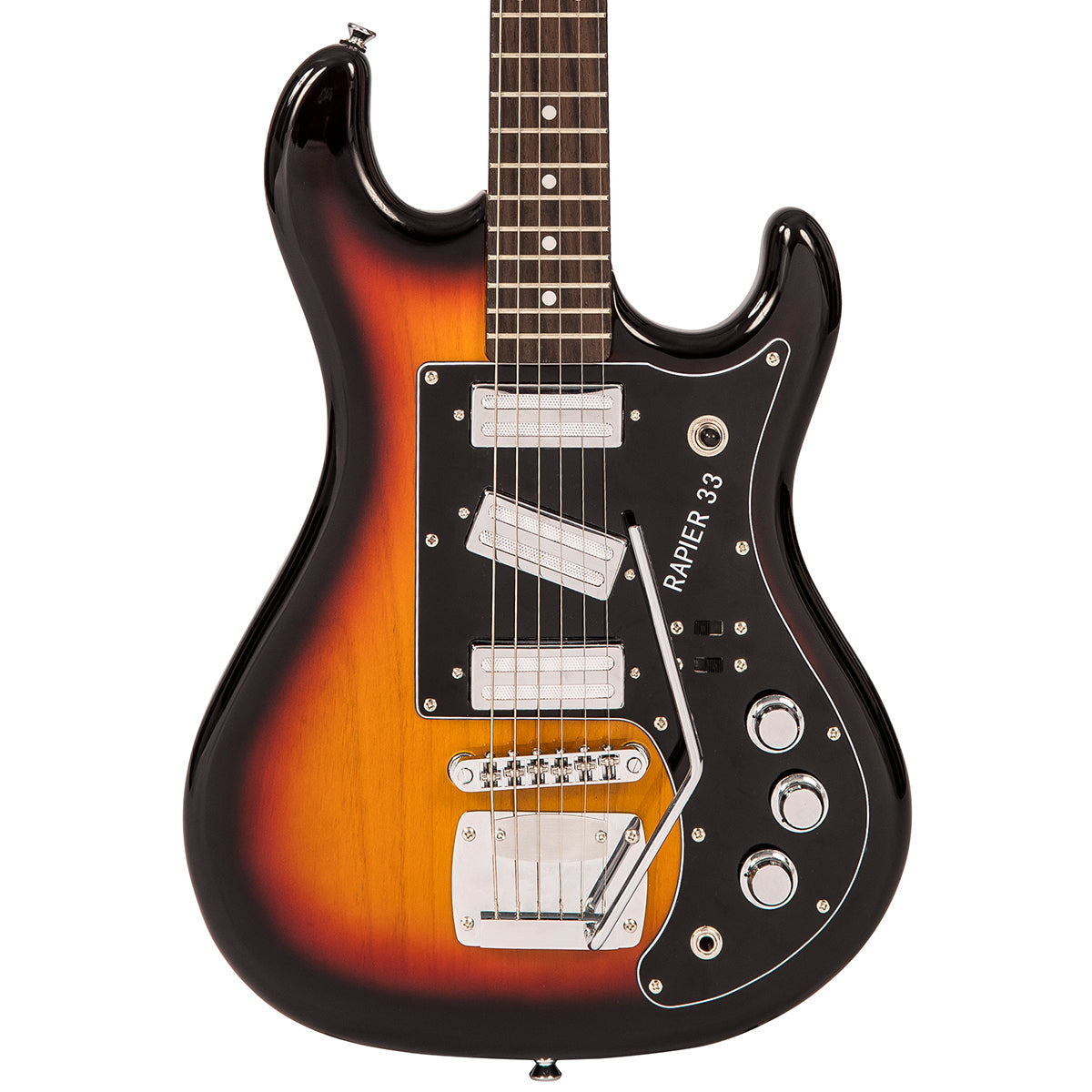

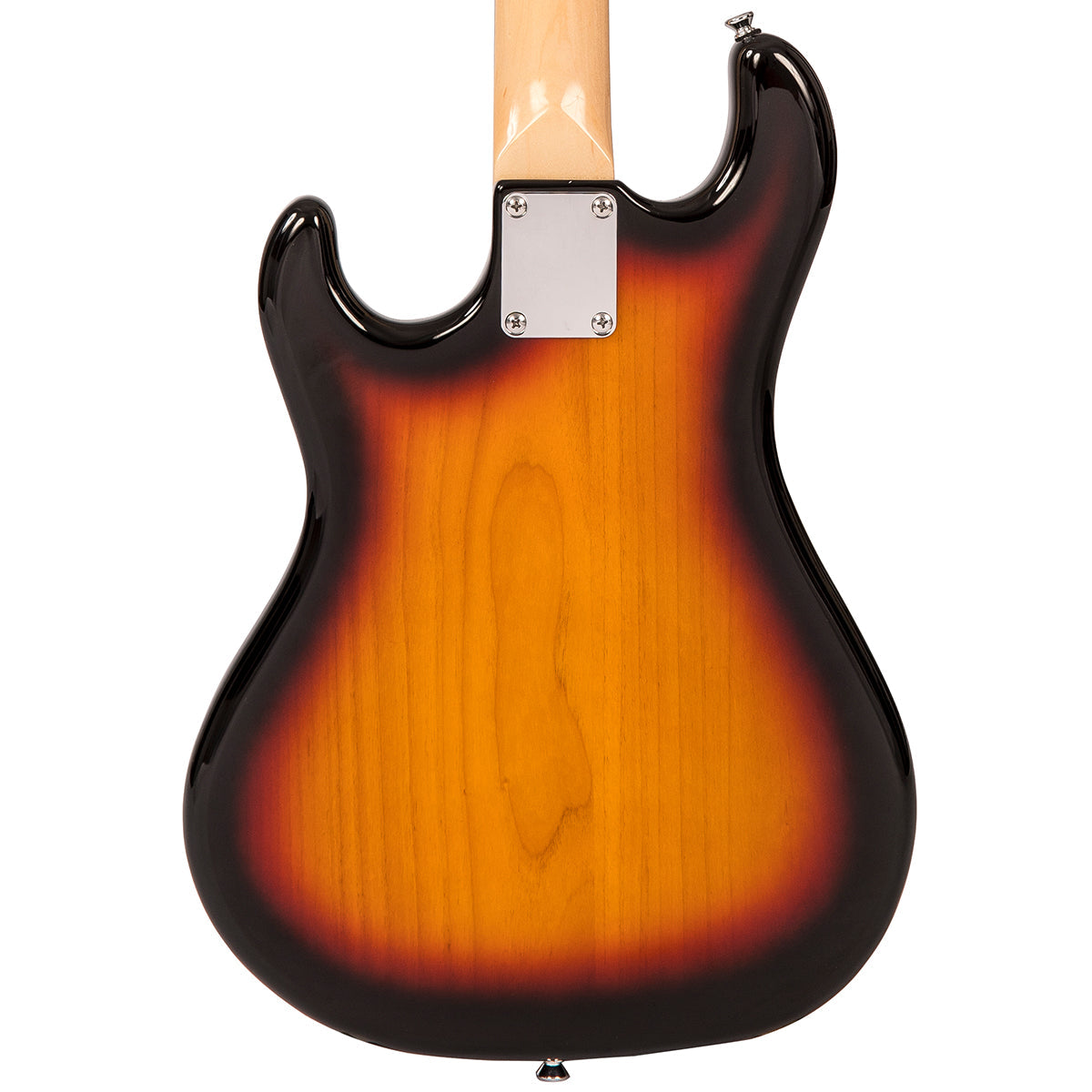

Original double-cutaway solid body featuring Okoume, a central African tonewood chosen specifically for its warmth, depth and high-end clarity.

Vibrato:

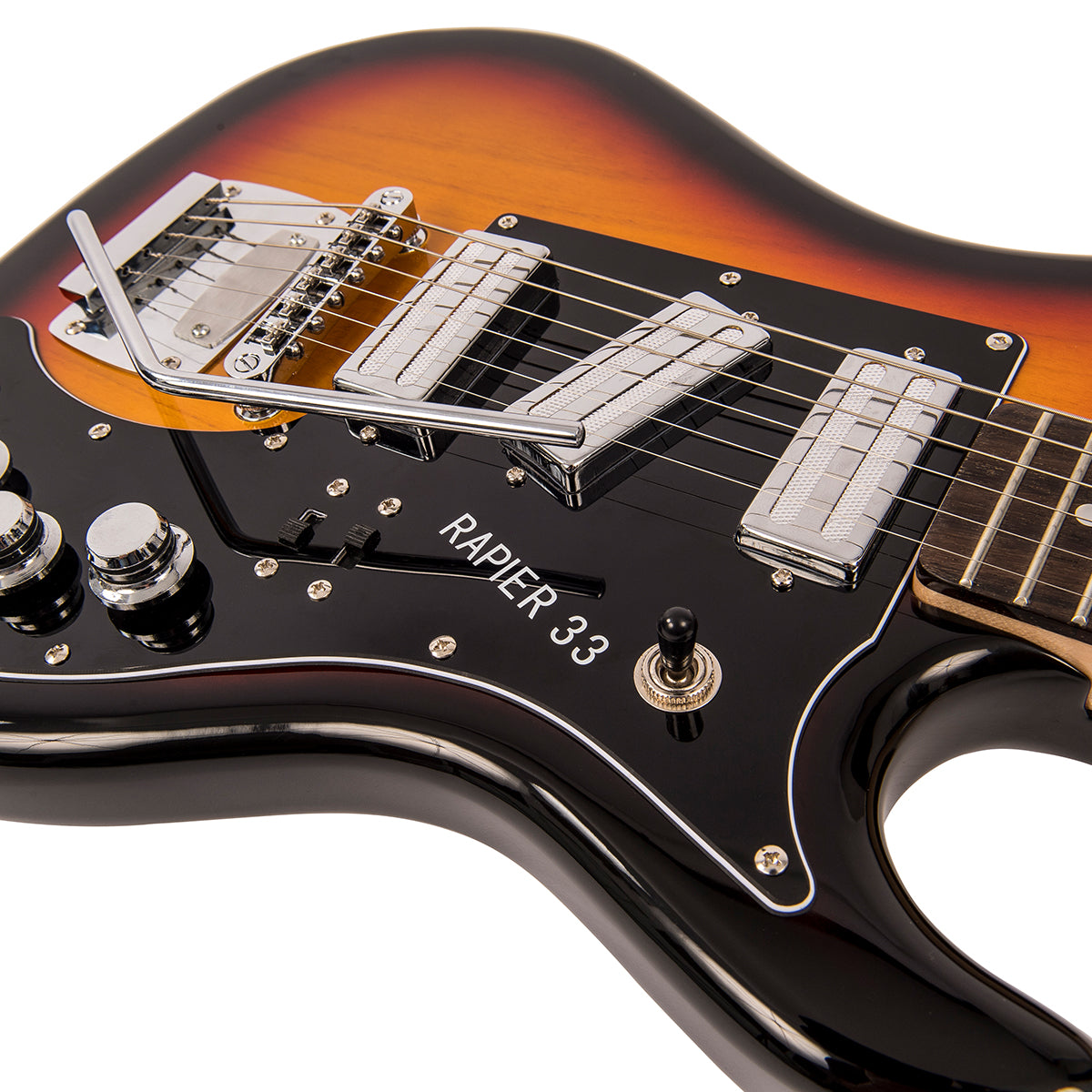

Original Rapier Hi Lo design smooth action vibrato system, with chrome finish.

Pickups:

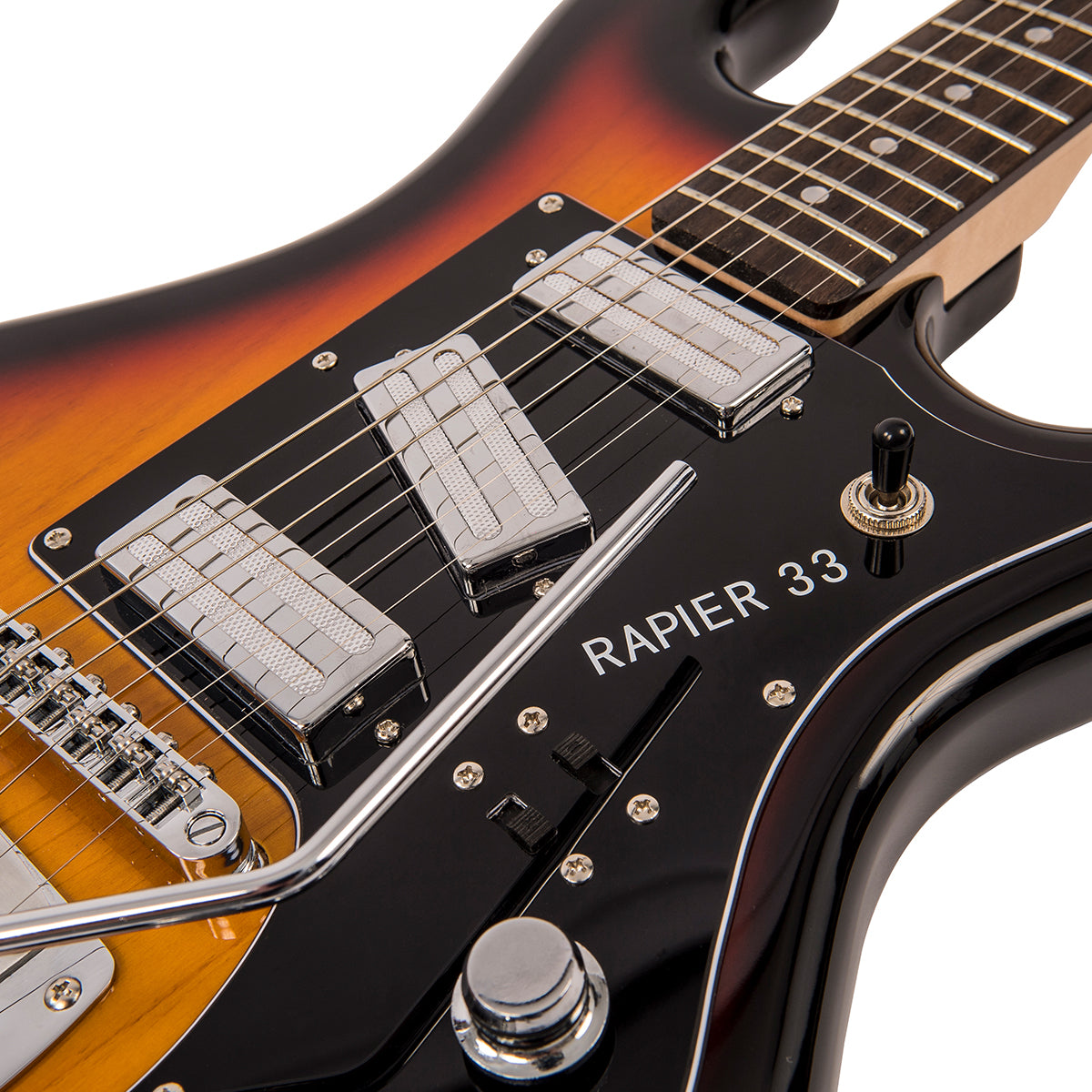

3 Alan Entwistle low-noise EWR64 mini-humbucker pickups, delivering exceptional tonal response, balance output and clarity.

Controls:
Two Volume Controls and a Tone control. 3-way pickup selector switch. 2 slide switches: Middle pickup selector and bass

Machine heads:

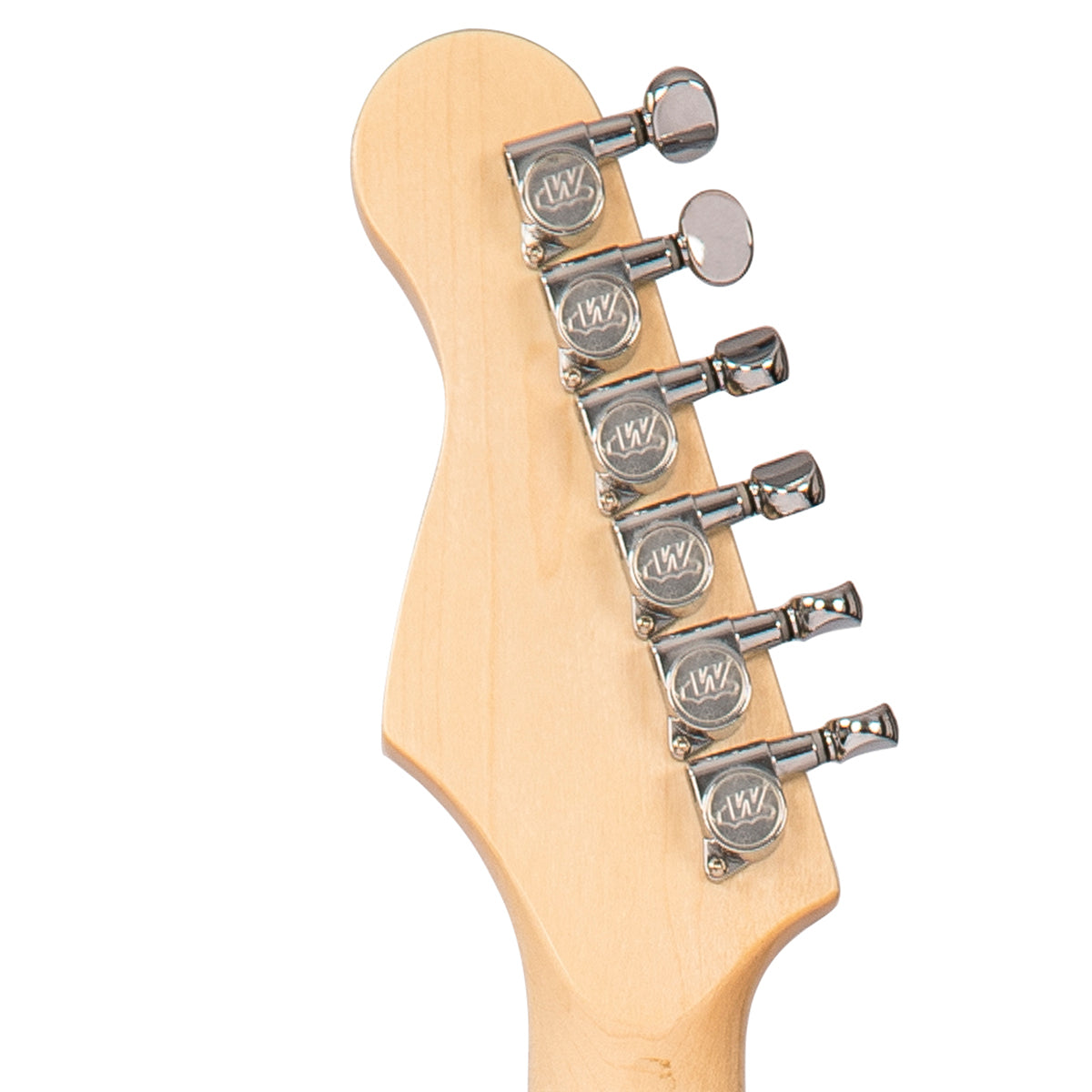

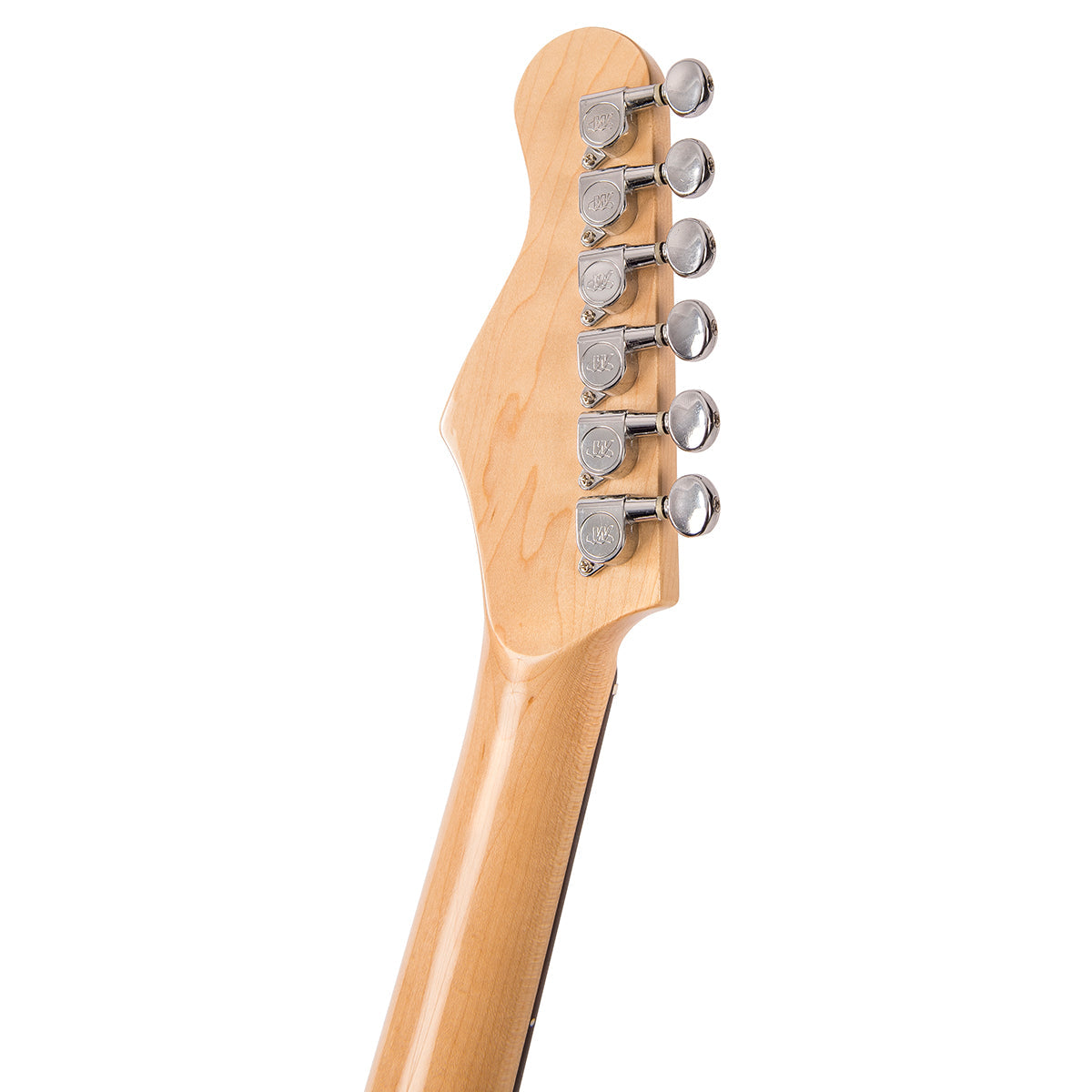

6-inline Wilkinson WJN-05 machine heads provide simple, effective action for maximum tuning stability.

Neck:
4 bolt hard rock Canadian maple with soft ‘C’ profile for instant comfort, speed, accuracy and great feel. Fully adjustable truss rod,

Fingerboard:
12" radius rosewood fingerboard, fitted with 23 medium jumbo frets (including zero fret).

Scale Length:
25.5" / 648 mm.

Frets:
23 - including zero fret. Medium profile for added comfort, accuracy and an overall positive feel.

Nufriction-free 43mm nut.

Headstock:

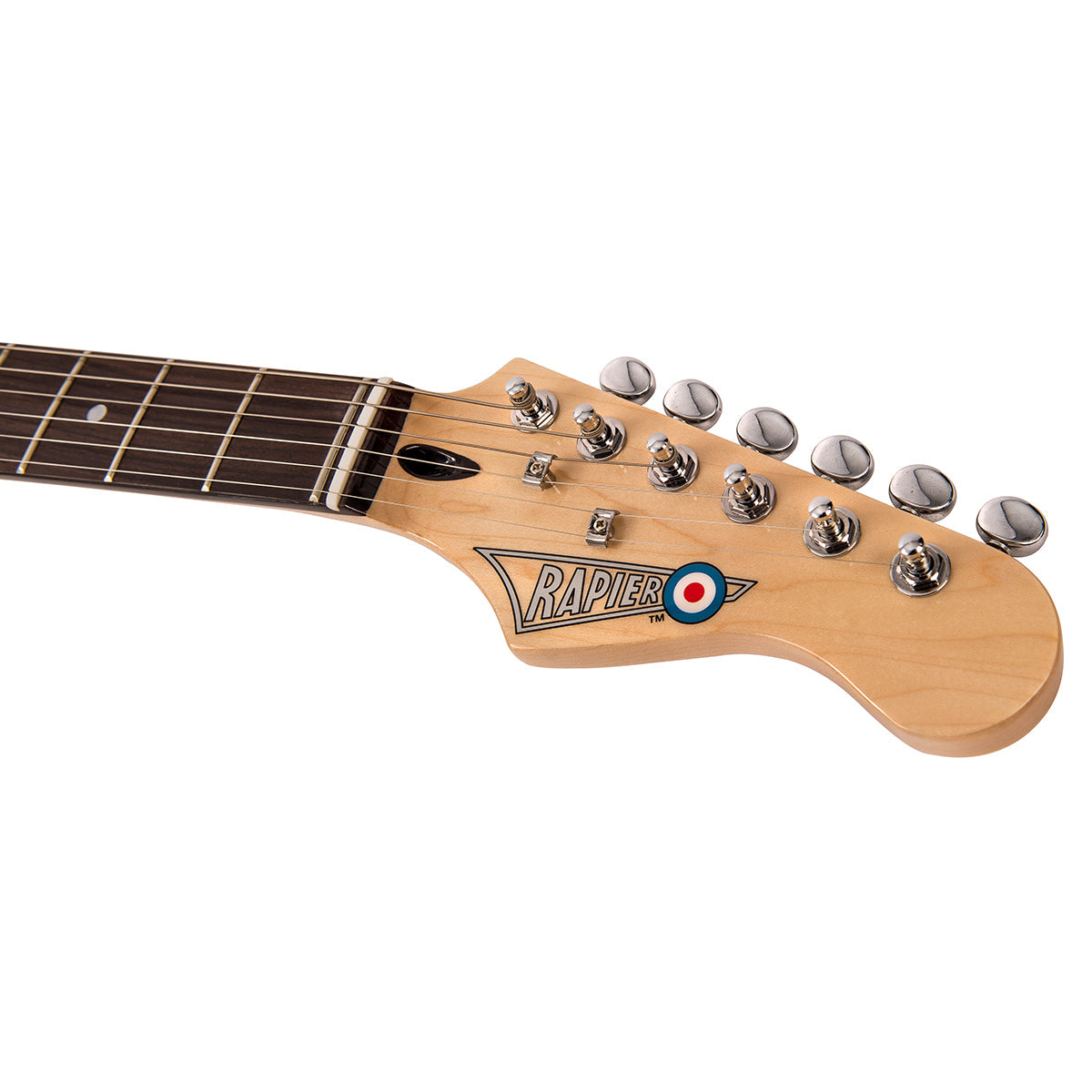

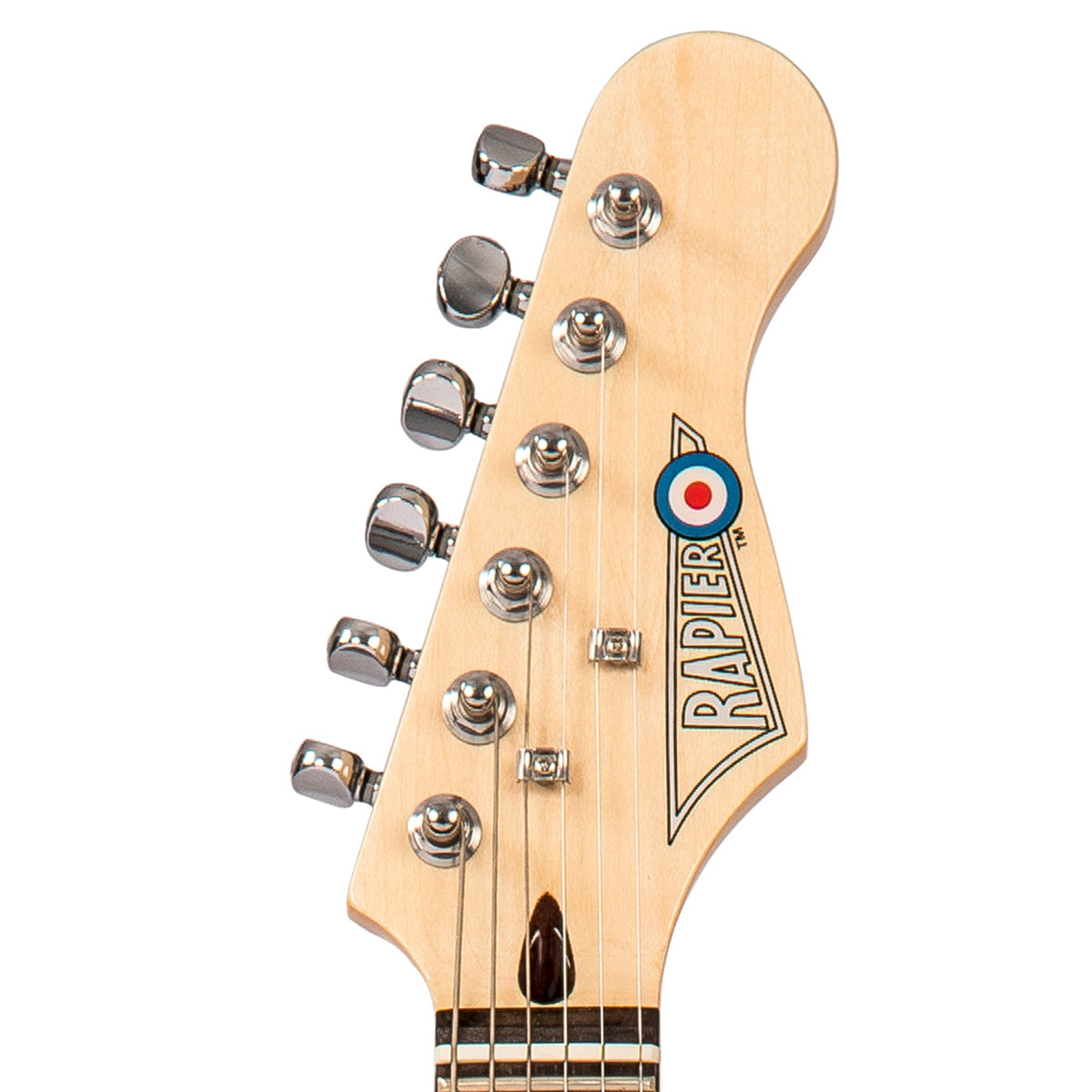

Classic design with new generation Rapier logo.

The Rapier™ 33 is a collaboration between Alan Entwhistle and JHS.
